LoxiLB Network Visibility Tool Documentation

Table of Contents

Overview

LoxiLB's Network Visibility Tool provides comprehensive observability for load balancing traffic using Prometheus for metrics collection and Grafana for visualization. This guide details the deployment and configuration steps to set up LoxiLB, Prometheus, Loki, and Grafana.

LoxiLB Collector

Purpose

LoxiLB supports exporting flow metrics with LoxiLB Kubernetes LoadBalancer service information and sending them to a LoxiLB Prometheus collector. This allows for in-depth monitoring and visibility into LoxiLB's performance and traffic handling.

Prometheus Metrics

LoxiLB exposes various Prometheus metrics categorized as follows:

1. Connection Metrics

Metric Name Type Description
active_conntrack_count Gauge The number of active established connections.
active_flow_count_tcp Gauge The number of concurrent TCP flows.
active_flow_count_udp Gauge The number of concurrent UDP flows.
active_flow_count_sctp Gauge The number of concurrent SCTP flows.
inactive_flow_count Gauge The number of closed connections.
new_flow_count Gauge The number of new connections.

2. Traffic Metrics

Metric Name Type Description
processed_bytes Counter Total bytes processed.
processed_tcp_bytes Counter Total TCP bytes processed.
processed_udp_bytes Counter Total UDP bytes processed.
processed_sctp_bytes Counter Total SCTP bytes processed.
processed_packets Counter Total packets processed.

3. Request and Error Metrics

Metric Name Type Description
total_requests Counter Total number of requests processed.
total_errors Counter Total number of errors encountered.
total_requests_per_service CounterVec Requests per service.
total_errors_per_service CounterVec Errors per service.

4. Health Metrics

Metric Name Type Description
healthy_host_count Gauge Number of healthy backend endpoints.
unhealthy_host_count Gauge Number of unhealthy backend endpoints.

5. Load Balancer Rule Metrics

Metric Name Type Description
lb_rule_count Gauge Total number of load balancing rules.
consumed_lcus Gauge Number of Load Balancer Capacity Units (LCUs) used.

6. Firewall Metrics

Metric Name Type Description
total_fw_drops Gauge Number of packets dropped by the firewall.
total_fw_drops_per_rule GaugeVec Packets dropped per firewall rule.

7. Traffic Distribution Metrics

Metric Name Type Description
endpoint_load_dists_per_service GaugeVec Traffic distribution per service and endpoint.
total_load_dists_per_service GaugeVec Overall traffic distribution per service.

Architecture

LoxiLB Visibility Tool Architecture

The LoxiLB Network Visibility tool integrates Prometheus, Loki, and Grafana to provide comprehensive monitoring and logging for load balancing operations. The key components of this architecture are:

LoxiLB:

  • The core load balancer exporting metrics and logs.
  • Exposes:
  • Prometheus Export APIs for real-time metric collection.
  • Promtail for forwarding logs to Loki.
  • REST API for additional visibility through Grafana’s Infinity Plugin.

Prometheus:

  • Scrapes LoxiLB Export APIs to collect key metrics like connection status, traffic distribution, and error rates.
  • Metrics are stored and made available for visualization in Grafana through the Prometheus Plugin.

Loki + Promtail:

  • Promtail collects logs from LoxiLB and pushes them to Loki.
  • Loki provides scalable log storage and indexing.
  • Logs are visualized in Grafana through the Loki Plugin.

Grafana:

  • The centralized visualization layer.
  • Integrates three primary data sources:
  • Prometheus Plugin for metrics.
  • Loki Plugin for logs.
  • Infinity Plugin for REST API-based insights.

This architecture ensures real-time visibility into LoxiLB's performance, allowing operators to monitor network traffic, troubleshoot failures, and analyze logs efficiently.

Deployment Guide

Namespace Setup

Create the monitoring namespace:

kubectl apply -f - <<EOF
apiVersion: v1
kind: Namespace
metadata:
  name: monitoring
EOF

LoxiLB Deployment

Deploy LoxiLB as a DaemonSet with Promtail for log forwarding:

kubectl apply -f https://raw.githubusercontent.com/loxilb-io/kube-loxilb/blob/main/manifest/in-cluster-grafana/loxilb.yaml

Kube-LoxiLB Deployment

Deploy Kube-LoxiLB with the following command:

kubectl apply -f https://raw.githubusercontent.com/loxilb-io/kube-loxilb/blob/main/manifest/in-cluster-grafana/kube-loxilb.yaml

Prometheus and Loki Setup

Deploy Prometheus and Loki:

kubectl apply -f loxilb-collector.yaml

Grafana Dashboard Setup

Deploy Grafana and configure it to use Prometheus and Loki as data sources:

kubectl apply -f loxilb-grafana.yaml

Run the following command to check if ClickHouse and Grafana are deployed properly:

kubectl get all -n monitoring

The expected results will be like:

NAME                               READY   STATUS    RESTARTS   AGE
pod/grafana-llb-674d977bcd-tg48p   1/1     Running   0          53m
pod/loki-84889c745c-bmppk          1/1     Running   0          8d
pod/prometheus-54958dc4c8-l72t7    1/1     Running   0          8d

NAME                     TYPE           CLUSTER-IP      EXTERNAL-IP         PORT(S)           AGE
service/grafana-llb      LoadBalancer   10.233.39.107   llb-192.168.0.251   59301:30115/TCP   53m
service/grafana-svc      ClusterIP      10.233.39.130   <none>              3000/TCP          53m
service/loki             ClusterIP      10.233.51.93    <none>              3100/TCP          8d
service/loki-llb         LoadBalancer   10.233.20.171   llb-192.168.0.251   59302:32475/TCP   8d
service/prometheus       ClusterIP      10.233.10.55    <none>              9090/TCP          8d
service/prometheus-llb   LoadBalancer   10.233.2.91     llb-192.168.0.251   59303:30893/TCP   8d

NAME                          READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/grafana-llb   1/1     1            1           53m
deployment.apps/loki          1/1     1            1           8d
deployment.apps/prometheus    1/1     1            1           8d

NAME                                     DESIRED   CURRENT   READY   AGE
replicaset.apps/grafana-llb-674d977bcd   1         1         1       53m
replicaset.apps/loki-84889c745c          1         1         1       8d
replicaset.apps/prometheus-54958dc4c8    1         1         1       8d

Run the following commands to print the IP of the workder Node and the Port that Grafana is listening on:

GRAFANA_LB_IP=$(kubectl get svc grafana-llb -n monitoring -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
if [ -z "$GRAFANA_LB_IP" ]; then
    GRAFANA_LB_IP=$(kubectl get svc grafana-llb -n monitoring -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
fi

# Get the LoadBalancer service port
GRAFANA_PORT=$(kubectl get svc grafana-llb -n monitoring -o jsonpath='{.spec.ports[0].port}')

# Check if GRAFANA_LB_IP is empty, fallback to NodePort access
if [ -z "$GRAFANA_LB_IP" ]; then
    echo "No external LoadBalancer IP found! Falling back to NodePort access."

    # Get the node where Grafana is running
    NODE_NAME=$(kubectl get pod -l app=grafana -n monitoring -o jsonpath='{.items[0].spec.nodeName}')
    NODE_IP=$(kubectl get nodes ${NODE_NAME} -o jsonpath='{.status.addresses[0].address}')

    # Get the NodePort assigned to Grafana
    GRAFANA_NODEPORT=$(kubectl get svc grafana-llb -n monitoring -o jsonpath='{.spec.ports[*].nodePort}')

    echo "=== Grafana Service is accessible via NodePort at http://${NODE_IP}:${GRAFANA_NODEPORT} ==="
    echo "You can now open the Grafana dashboard in the browser using:"
    echo "  http://${NODE_IP}:${GRAFANA_NODEPORT}"
else
    echo "=== Grafana Service is accessible at http://${GRAFANA_LB_IP}:${GRAFANA_PORT} ==="
    echo "You can now open the Grafana dashboard in the browser using:"
    echo "  http://${GRAFANA_LB_IP}:${GRAFANA_PORT}"
fi

echo "You should be able to see the Grafana login page."
echo "Default login credentials:"
echo "  Username: admin"
echo "  Password: password"

You can now open the Grafana dashboard in the browser using http://[NodeIP]:[GRAFANA_PORT]. You should be able to see a Grafana login page. Login credentials:

  • username: admin
  • password: password

Configuration Details

LoxiLB Configuration

LoxiLB is configured to export metrics via Prometheus and logs via Loki. The configuration includes: - Prometheus Exporter: Exposes metrics on /netlox/v1/metrics. - Promtail Logging Integration: Forwards logs to Loki. - Annotations for LoadBalancer Services: Enables integration with monitoring tools.

Prometheus Configuration

Prometheus is configured to scrape metrics from LoxiLB using the following configuration:

scrape_configs:
  - job_name: 'loxilb'
    metrics_path: /netlox/v1/metrics
    static_configs:
      - targets:
        - 'loxilb-lb-service.kube-system.svc.cluster.local:11111'

Grafana Configuration

Grafana is configured with Prometheus and Loki as data sources. The configuration includes:

apiVersion: 1
datasources:
  - name: Prometheus
    type: prometheus
    access: proxy
    url: http://prometheus:9090
  - name: Loki
    type: loki
    access: proxy
    url: http://loki:3100

Grafana Credentials Configuration

Grafana credentials are specified in loxilb-grafana.yml as a Secret named grafana-admin-secret as shown below. Please also make the corresponding changes.

apiVersion: v1
kind: Secret
metadata:
  name: grafana-admin-secret
  namespace: monitoring
type: Opaque
data:
  admin-password: cGFzc3dvcmQ=  # Base64-encoded password (e.g., 'password')

Grafana Dashboards

Home Dashboard

Home dashboard is the LoxiLB dashboard in the general folder. You will see it after logging into Grafana. It provides an overview of the monitored LoxiLB cluster.

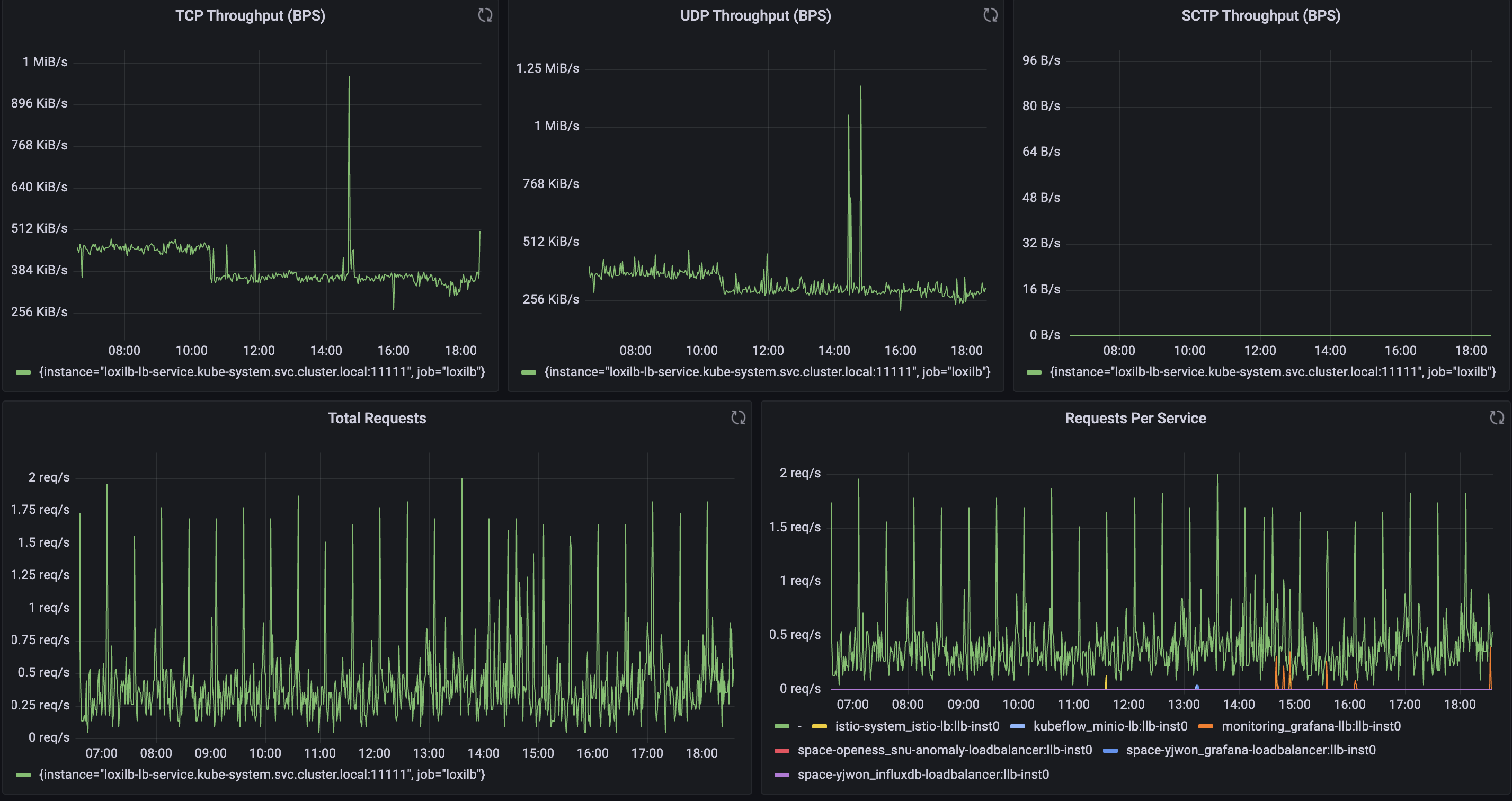

Traffic Throughput & Requests Metrics

setup

This section displays the total traffic processed by LoxiLB across different protocols, along with request rate statistics.

Panels:
  • TCP Throughput (BPS): Tracks TCP traffic processed by LoxiLB in bytes per second.
  • UDP Throughput (BPS): Tracks UDP traffic processed by LoxiLB.
  • SCTP Throughput (BPS): Displays SCTP traffic throughput, useful in telecom and specialized workloads.
  • Total Requests: Shows the request rate over time.
  • Requests Per Service: Breaks down request volume per service, identifying load distribution across multiple services.

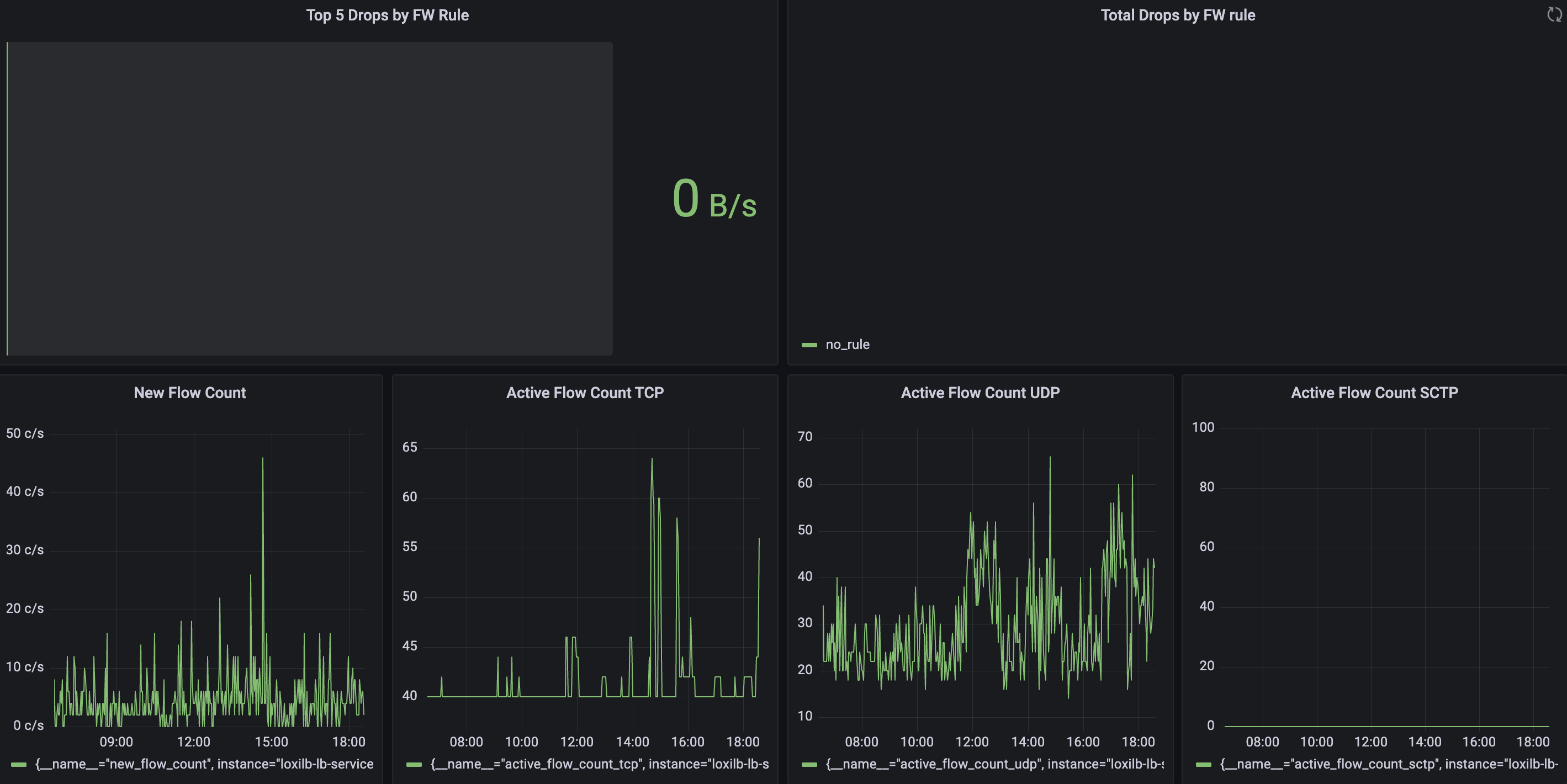

Connection & Flow Metrics

This section provides insights into active and new connections.

setup

Panels:
  • New Flow Count: Displays the rate of new connections initiated.
  • Active Flow Count (TCP, UDP, SCTP): Monitors the number of ongoing TCP, UDP, and SCTP flows.
  • Firewall Drops (Top 5 Rules): Shows the top firewall rules that resulted in dropped packets.
  • Total Firewall Drops: Summarizes all packet drops due to firewall rules.

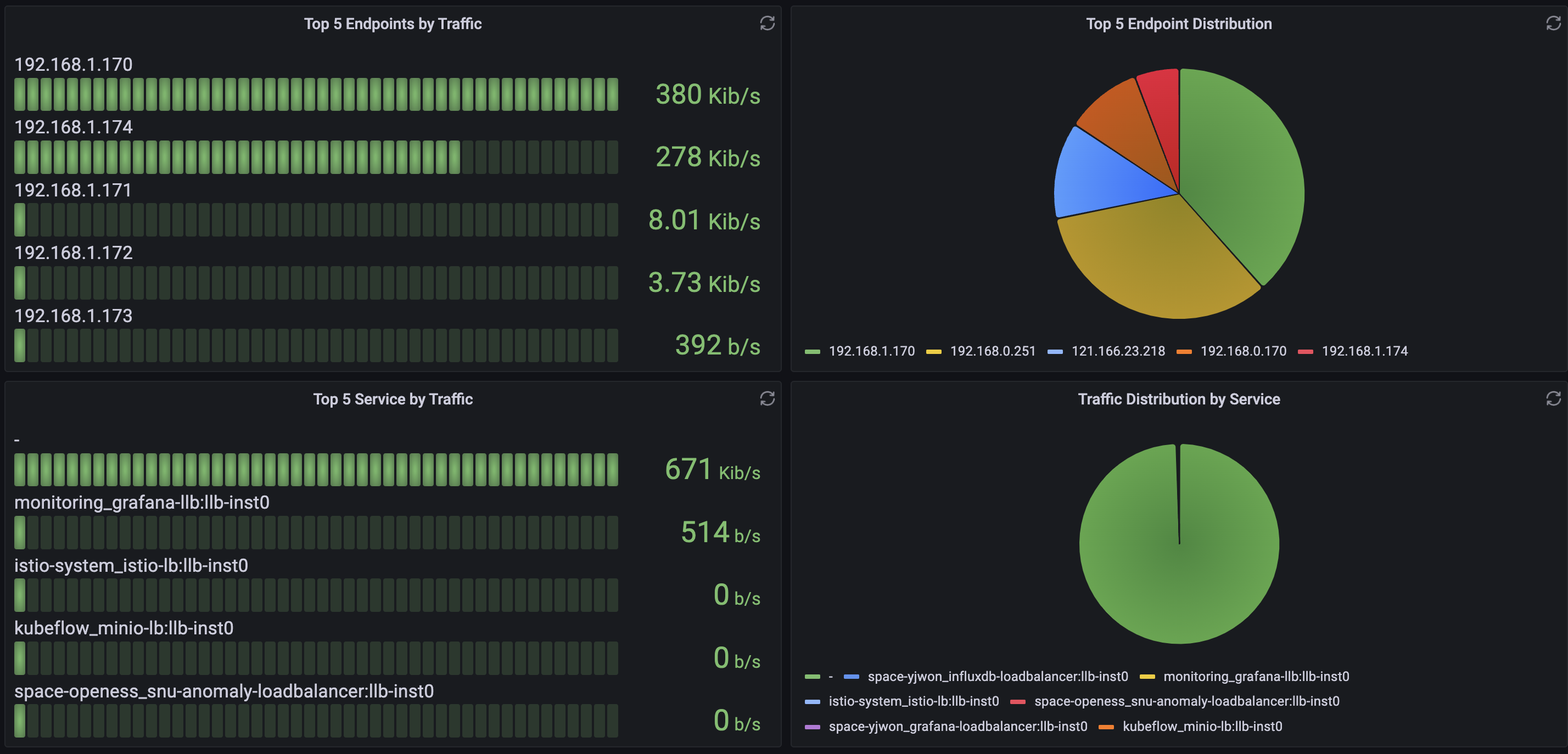

Traffic Distribution by Endpoints & Services

These panels analyze traffic distribution across services and endpoints.

setup

Panels:
  • Top 5 Endpoints by Traffic: Displays the five backend endpoints handling the most traffic.
  • Top 5 Endpoint Distribution (Pie Chart): Graphical representation of traffic distribution among the top endpoints.
  • Top 5 Services by Traffic: Shows which services are consuming the most bandwidth.
  • Traffic Distribution by Service (Pie Chart): Breaks down service-level traffic in a pie chart.

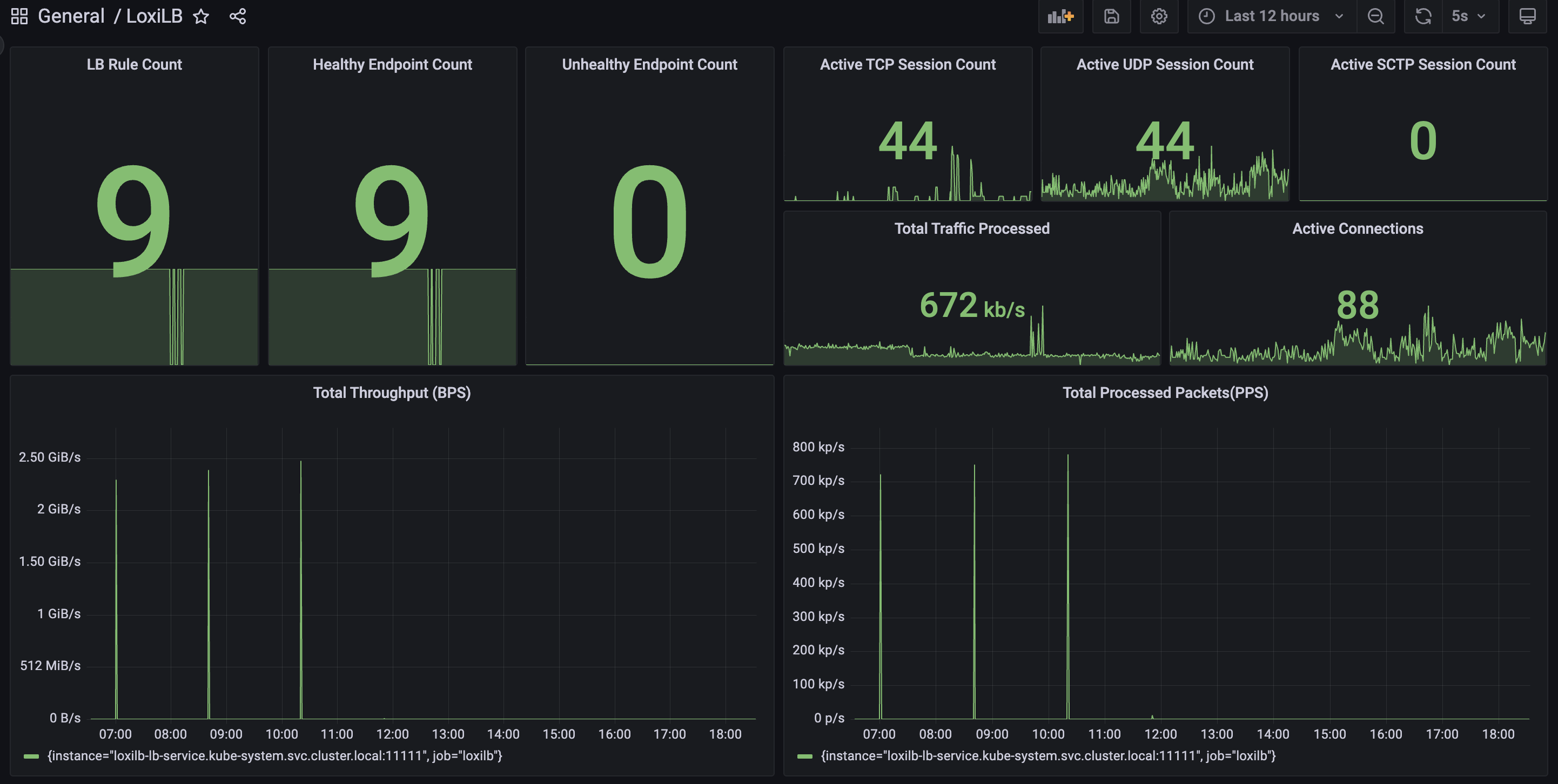

Load Balancer Health & Session Metrics

This section tracks the health of load balancer rules and active session counts.

setup

Panels:
  • LB Rule Count: Shows the number of active load balancing rules.
  • Healthy Endpoint Count: Displays the number of healthy backend services.
  • Unhealthy Endpoint Count: Alerts when backend services become unhealthy.
  • Active TCP, UDP, SCTP Session Count: Monitors active sessions for each protocol.
  • Total Processed Traffic (BPS): Measures the aggregate traffic handled by LoxiLB.
  • Total Processed Packets (PPS): Displays total packet processing rate.

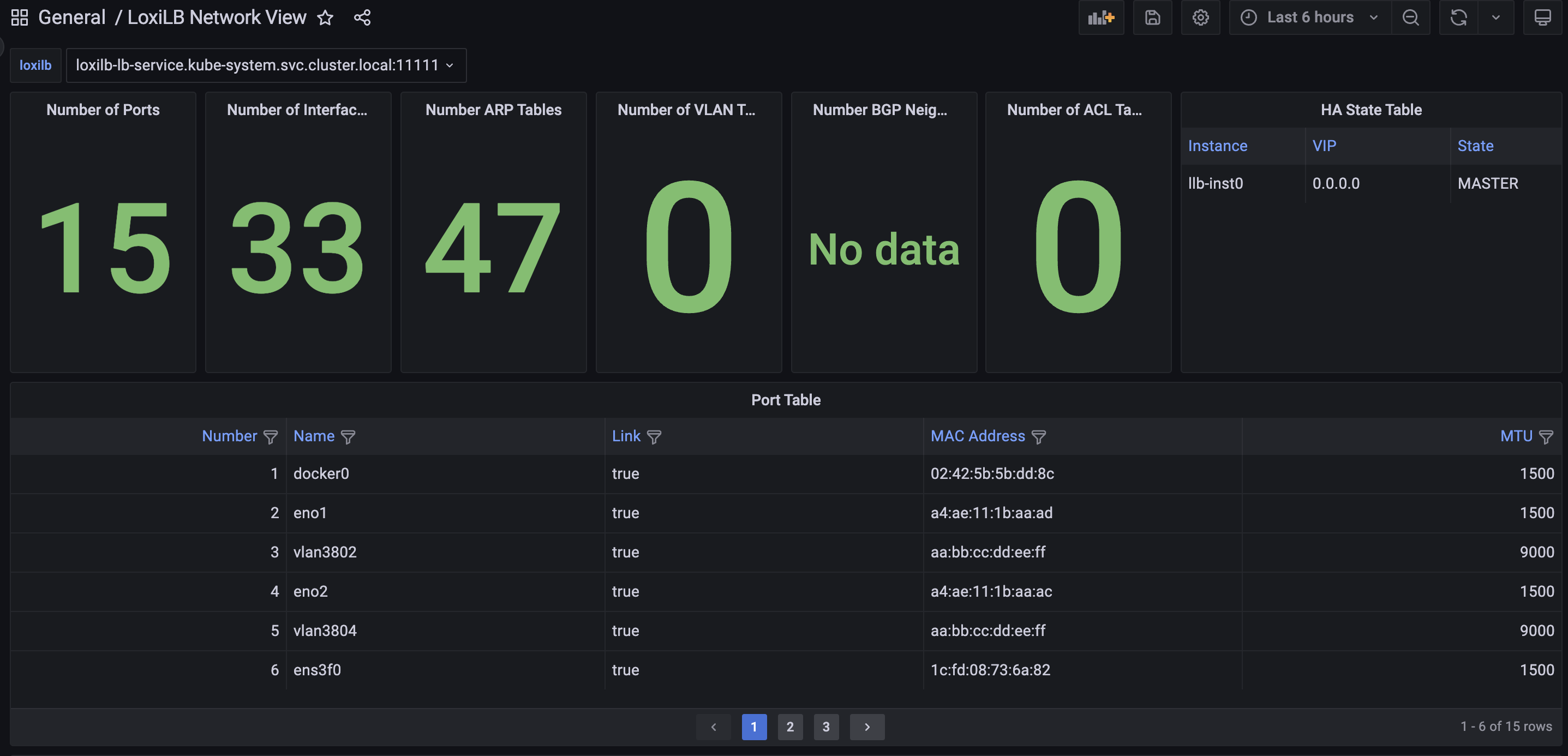

Network Dashboard

The Network Dashboard provides a real-time overview of LoxiLB's network state, including interface statistics, ARP tables, routing information, and high availability (HA) status.

setup

setup

Network Table information

Panels:
  • Number of Ports: Displays the total number of network ports managed by LoxiLB.
  • Number of Interfaces: Shows the total network interfaces available.
  • Number of ARP Tables: Indicates the count of ARP (Address Resolution Protocol) entries being tracked.
  • Number of VLAN Tables: Displays the number of VLAN configurations present in the system.
  • Number of BGP Neighbors: Shows the total count of configured BGP neighbors.
  • Number of ACL Tables: Displays the total ACL (Access Control List) rules applied.

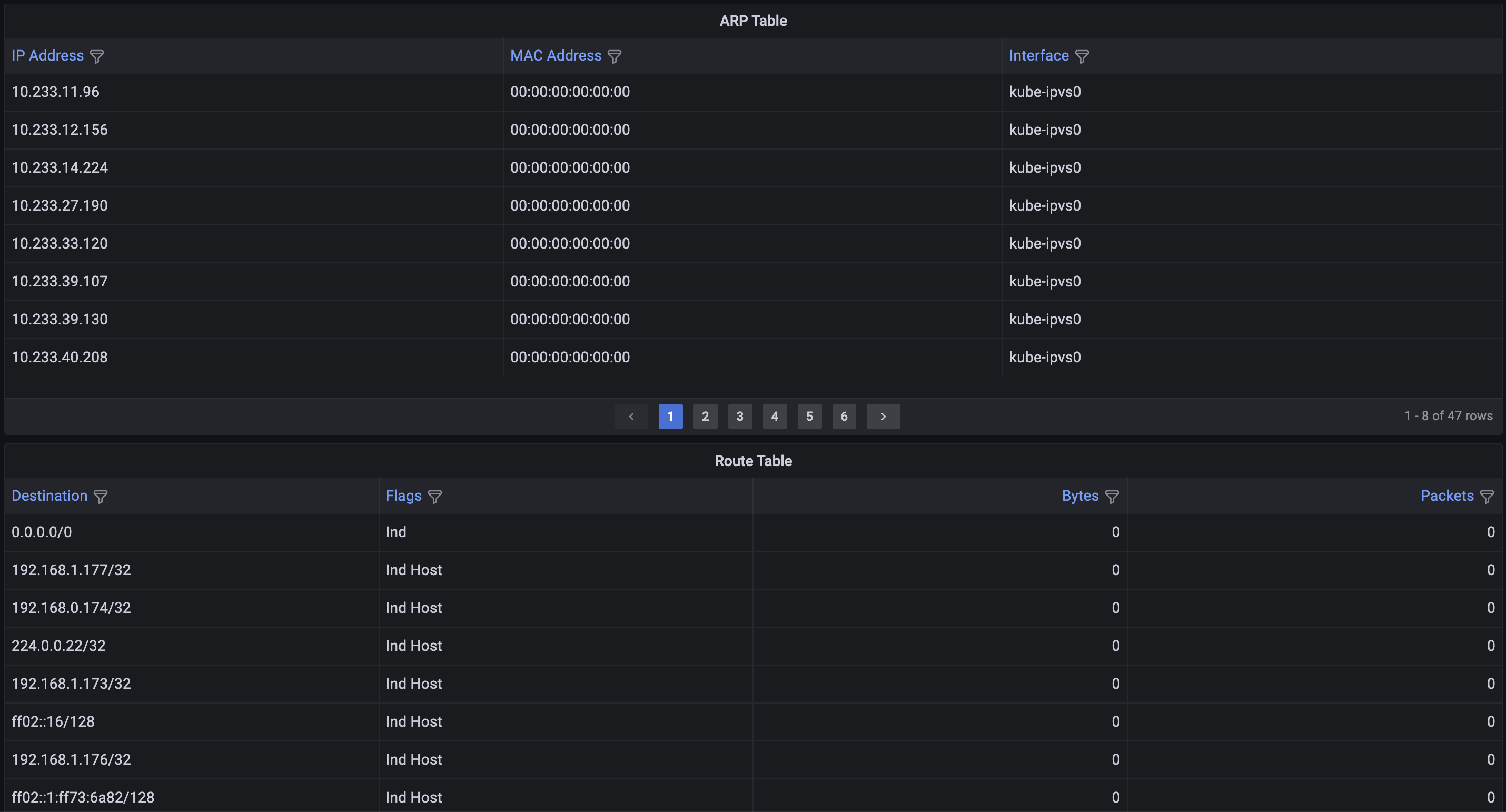

Additional Tables:
  • ARP Table: Displays the real-time ARP cache, mapping IP addresses to MAC addresses.
  • Route Table: Lists active routes, including destination addresses, route flags, and packet/byte counters.
  • Port Table: Provides details on network interfaces, including MAC addresses, MTU settings, and port activity.
  • HA State Table: Displays high availability status, indicating whether the LoxiLB instance is operating in MASTER or BACKUP mode.

This dashboard is essential for network administrators to monitor LoxiLB’s network configuration and troubleshoot connectivity issues efficiently.

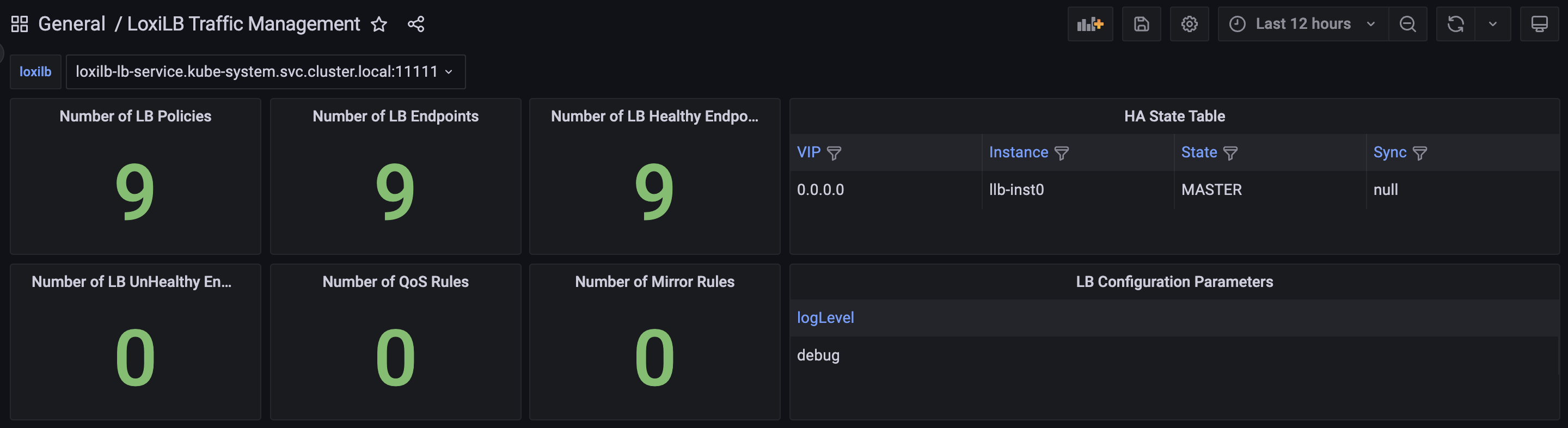

LoxiLB Traffic Management Dashboard

The LoxiLB Traffic Management Dashboard focuses on policies, load balancing rules, and endpoint monitoring. It provides insights into active LB policies, endpoint states, and high-availability configurations.

LoxiLB Configuration & Monitoring information

Panels:
  • Number of LB Policies: Displays the count of active load balancer policies.
  • Number of LB Endpoints: Shows the total number of backend endpoints.
  • Number of Healthy Endpoints: Displays the count of healthy endpoints.
  • Number of Unhealthy Endpoints: Indicates any failed or unhealthy endpoints.
  • Number of QoS Rules: Displays the number of QoS policies applied.

  • Number of Mirror Rules: Shows the active mirroring policies. setup

  • HA State Table: Displays the High Availability (HA) status of LoxiLB instances.

  • LB Configuration Parameters: Displays key configuration settings for LoxiLB.

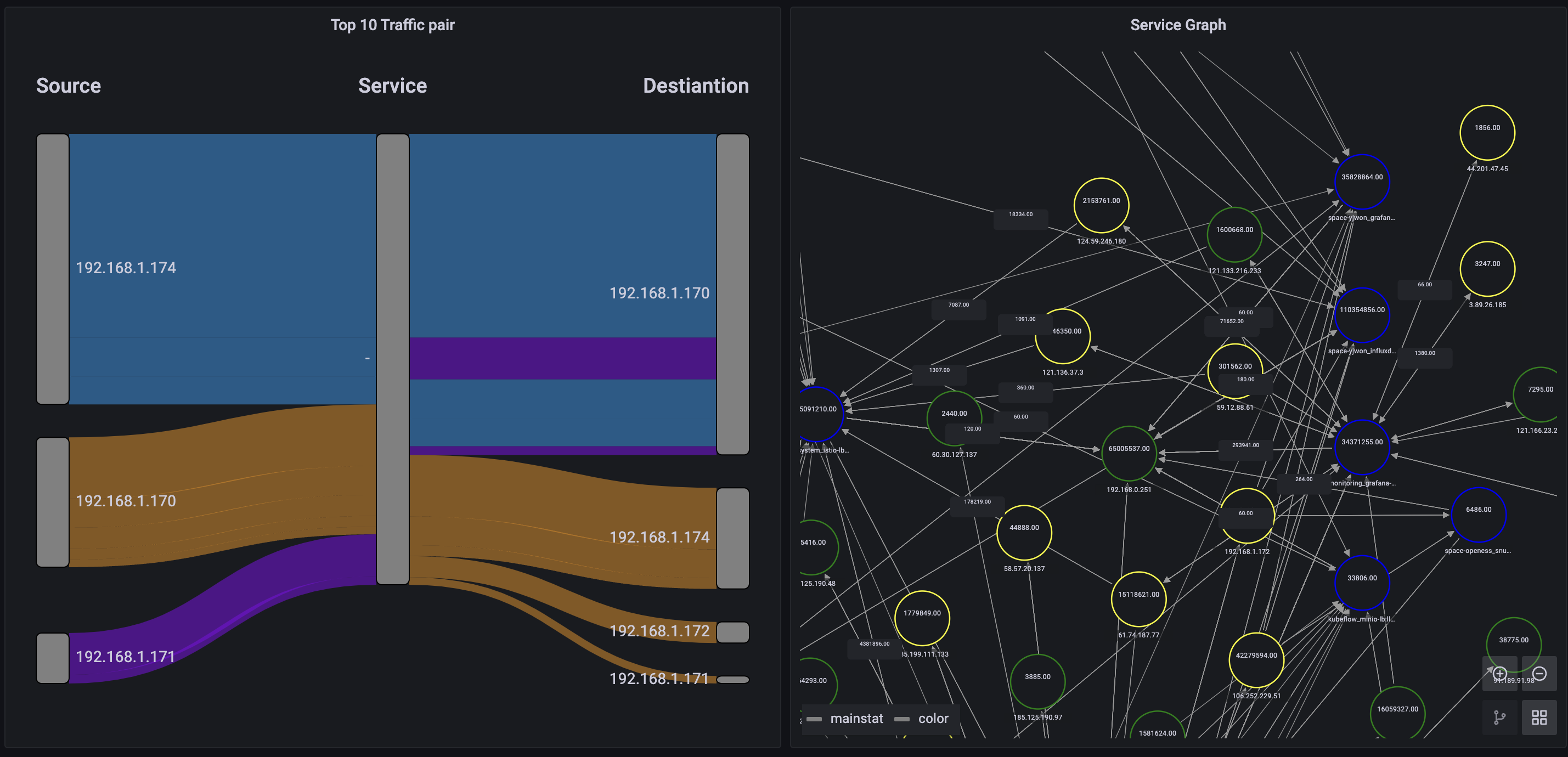

  • Traffic Pair Analysis: Shows the top traffic pairs between source and destination.
  • Service Graph: A network graph representation of LoxiLB traffic distribution. setup

Troubleshooting

  • Ensure all pods in the monitoring namespace are running:
kubectl get pods -n monitoring
  • Check logs for Prometheus, Loki, and Grafana:
kubectl logs -n monitoring -l app=prometheus
kubectl logs -n monitoring -l app=loki
kubectl logs -n monitoring -l app=grafana
  • Validate service endpoints:
kubectl get svc -n monitoring
  • If Prometheus is not scraping metrics correctly, ensure that the target LoxiLB metrics endpoint is reachable:

Run the following commands to print the IP of the workder Node and the Port that Prometheus is listening on:

PROMETHEUS_LB_IP=$(kubectl get svc prometheus-llb -n monitoring -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
if [ -z "$PROMETHEUS_LB_IP" ]; then
    PROMETHEUS_LB_IP=$(kubectl get svc prometheus-llb -n monitoring -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
fi

# Get the LoadBalancer service port
PROMETHEUS_PORT=$(kubectl get svc prometheus-llb -n monitoring -o jsonpath='{.spec.ports[0].port}')

# Check if PROMETHEUS_LB_IP is empty, fallback to NodePort access
if [ -z "$PROMETHEUS_LB_IP" ]; then
    echo "No external LoadBalancer IP found! Falling back to NodePort access."

    # Get the node where Grafana is running
    NODE_NAME=$(kubectl get pod -l app=grafana -n monitoring -o jsonpath='{.items[0].spec.nodeName}')
    NODE_IP=$(kubectl get nodes ${NODE_NAME} -o jsonpath='{.status.addresses[0].address}')

    # Get the NodePort assigned to Grafana
    PROMETHEUS_NODEPORT=$(kubectl get svc prometheus-llb -n monitoring -o jsonpath='{.spec.ports[*].nodePort}')

    echo "=== Grafana Service is accessible via NodePort at http://${NODE_IP}:${PROMETHEUS_NODEPORT} ==="
    echo "You can now open the Grafana dashboard in the browser using:"
    echo "  http://${NODE_IP}:${PROMETHEUS_NODEPORT}"
else
    echo "=== Grafana Service is accessible at http://${PROMETHEUS_LB_IP}:${PROMETHEUS_PORT} ==="
    echo "You can now open the Grafana dashboard in the browser using:"
    echo "  http://${PROMETHEUS_LB_IP}:${PROMETHEUS_PORT}"
fi

You can now open the Prometheus dashboard in the browser using http://[NodeIP]:[PROMETHEUS_PORT].

Then, visit http://[NodeIP]:[PROMETHEUS_PORT]/targets and verify that the LoxiLB metrics endpoint is listed and marked as UP.

  • If Loki logs are missing in Grafana, check the log pipeline configuration and Promtail logs:
kubectl logs -n monitoring -l app=promtail

This document provides a comprehensive overview of the metrics exposed by LoxiLB. Use these metrics to monitor performance, identify issues, and optimize your load balancer configuration. For further assistance, consult the LoxiLB documentation or contact the NetLOX support team.
